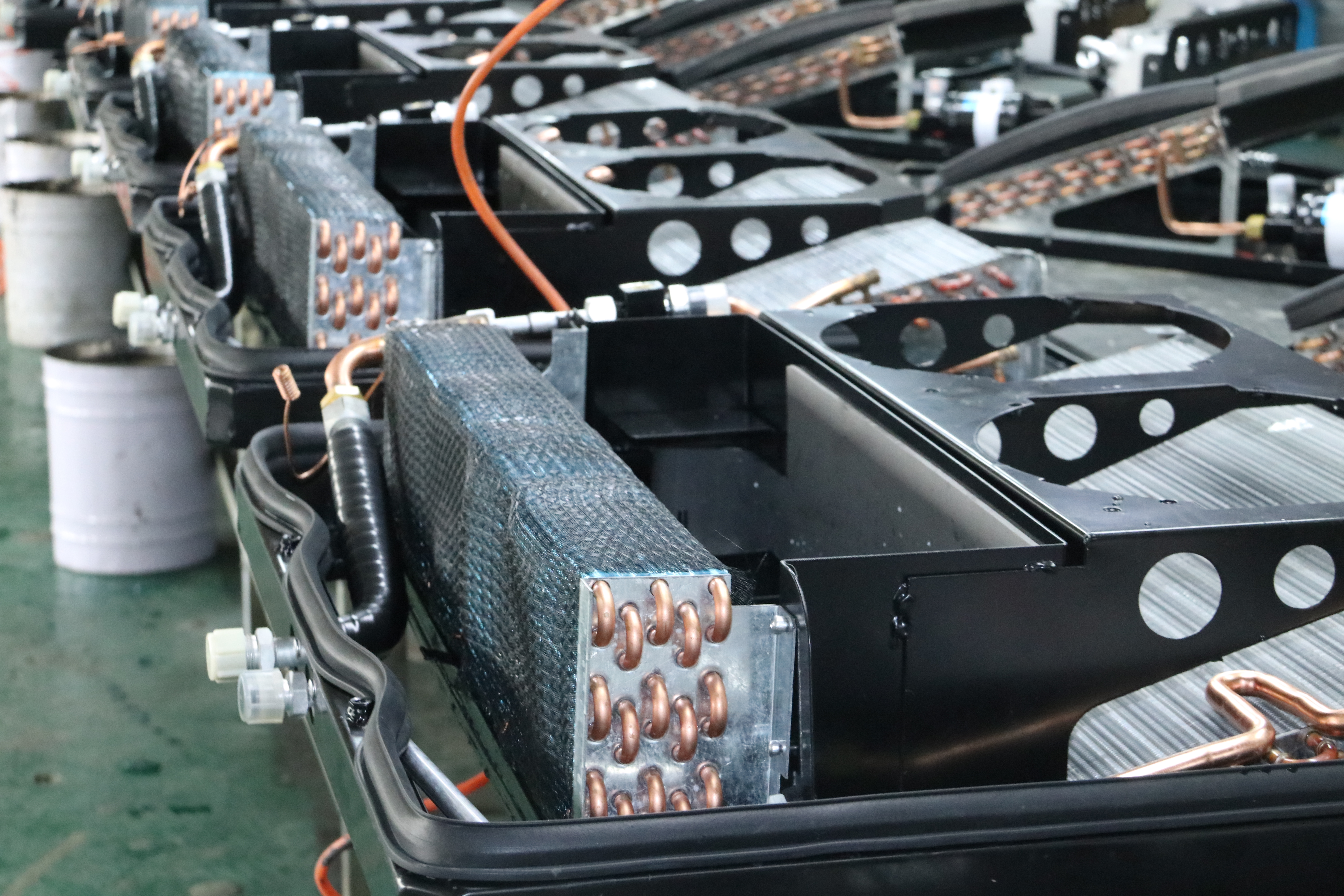

Camper Air Conditioner

Camper air conditioner and minibus air conditioning unit installation is a highly specialized project. Although a roof-mounted air conditioner may seem like simply “cutting an opening in the roof and putting it on,” the structure, sealing, electrical circuitry, and refrigeration piping involved are crucial. Improper installation can lead to leaks, air leaks, abnormal noises, poor cooling performance, and even safety hazards.

BUSCLIMA engineers say that before installing a camper air conditioner in a camper or minibus, we will provide you with a detailed explanation of the installation process, key points, and precautions.

I. Preparation and Planning Before Camper Air Conditioner Installation
1. Confirm Vehicle Model and Roof Structure
2. AC for Rv are not lightweight (usually 30-50 kg) and must be installed on a structure with sufficient load-bearing capacity, typically on the wooden or metal frame of a motorhome.
3. Roof Flatness: Check whether the roof at the intended installation location is flat and free of obstructions (such as solar panels, antennas, satellite dishes).

Choose a Suitable Location
1. Camper air conditioners are typically installed in the center-forward position of the roof, allowing for more even distribution of cool air to the front and rear of the vehicle through the ductwork.
2. Avoid installing near roof-mounted lights, overhead cabinets, or other internal fixtures, while also considering the layout of external solar panels.
3. Installation must be on the roof’s frame or reinforcing structure; safety is paramount.

Prepare Tools and Materials
1. Electric drill, jigsaw, template, sealant gun, multimeter, wrench set, level, etc.
2. High-quality RV-specific sealant (such as polyurethane sealant), self-tapping screws, wiring harness, waterproof junction box, ductwork, air vent grilles, etc.

II. Detailed Camper Air Conditioner Installation Steps
Step 1: Positioning and Drilling
1. Using the cardboard or plastic template provided by the manufacturer, accurately mark the locations on the roof where cuts are needed.
2. Ensure the template is level using a spirit level.
3. Drill a starting hole inside the marked line using an electric drill, then carefully cut the mounting hole along the marked line using a jigsaw.
4. The opening size must be precise; it’s better to err on the side of being too small. The edges must be smooth and even.

Step 2: Installing the Base and Sealing
1. Apply a uniform ring of high-quality sealant around the edge of the opening on the roof.
2. Carefully insert the base of the air conditioner outdoor unit into the opening, aligning it correctly.
3. Using the screws provided by the manufacturer, securely fix the base to the roof frame from the outside.
4. Immediately smooth any excess sealant with a scraper or your fingers (wearing gloves) to form a perfect waterproof seal.

Step 3: Internal Assembly and Electrical Connection
1. Inside the vehicle, install the indoor unit of the air conditioner (including the evaporator, fan, etc.) onto the base and secure it with screws.
2. Electrical Connection: This is the core technology and a safety critical point.
3. Wiring must be strictly in accordance with the circuit diagram.
4. The power cord must have sufficient wire diameter (square mm) to handle the air conditioner’s operating current. A dedicated line from the battery/distribution box is usually required.
5. All wiring points must use terminal blocks and be securely crimped, preferably reinforced with solder.
6. Appropriately sized fuses or circuit breakers must be installed.
7. If using an inverter, ensure its continuous output power is significantly greater than the air conditioner’s starting power (typically, the starting current is 2-3 times the operating current).

Step 4: Install Ductwork and Air Outlets
1. Connect the ductwork to the indoor unit’s air outlet.
2. Connect the other end of the ductwork to the pre-installed or custom-drilled air outlet grille on the roof.
3. Ensure all duct connections are properly sealed to prevent cold air leakage and maintain efficiency.

Step 5: Final Inspection and Testing
1. After installation, simulate rain with a water hose to check for leaks around the roof openings.
2. Double-check that all wiring is correct, secure, and properly insulated.
3. Connect the power supply and test the air conditioner’s cooling, heating, and fan speed settings to ensure they are working properly.
4. Check that the drain pipe is clear and that condensate drains properly outside the vehicle.
5. Listen to the operating sound and check for any abnormal vibrations or noises.

III. Camper Air Conditioner Key Precautions and Strong Recommendations
1. Never install an air conditioner directly on a non-load-bearing roof panel. This is extremely dangerous and could cause the roof to tear while driving.
2. Roof openings are permanent; waterproofing is essential. Use RV-specific sealant with extremely high weather resistance (UV protection, high and low temperature resistance).
3. Electrical wiring must be installed correctly, with sufficient wire gauge and compatible fuses. Improper wiring is a major cause of RV fires. If you are not familiar with electrical wiring, never attempt to install it yourself.

BUSCLIMA particularly emphasizes

Leave professional matters to professionals. Camper air conditioner installation should be performed by an automotive conversion engineer. Otherwise, it is strongly recommended to entrust the installation of the RV air conditioner to a professional RV conversion shop or service center. They possess the experience, specialized tools, and knowledge to ensure the safety and effectiveness of the installation.

If you have any questions about the installation process, please visit www.busclima.com or contact busclima@kingclima.com for technical assistance.
