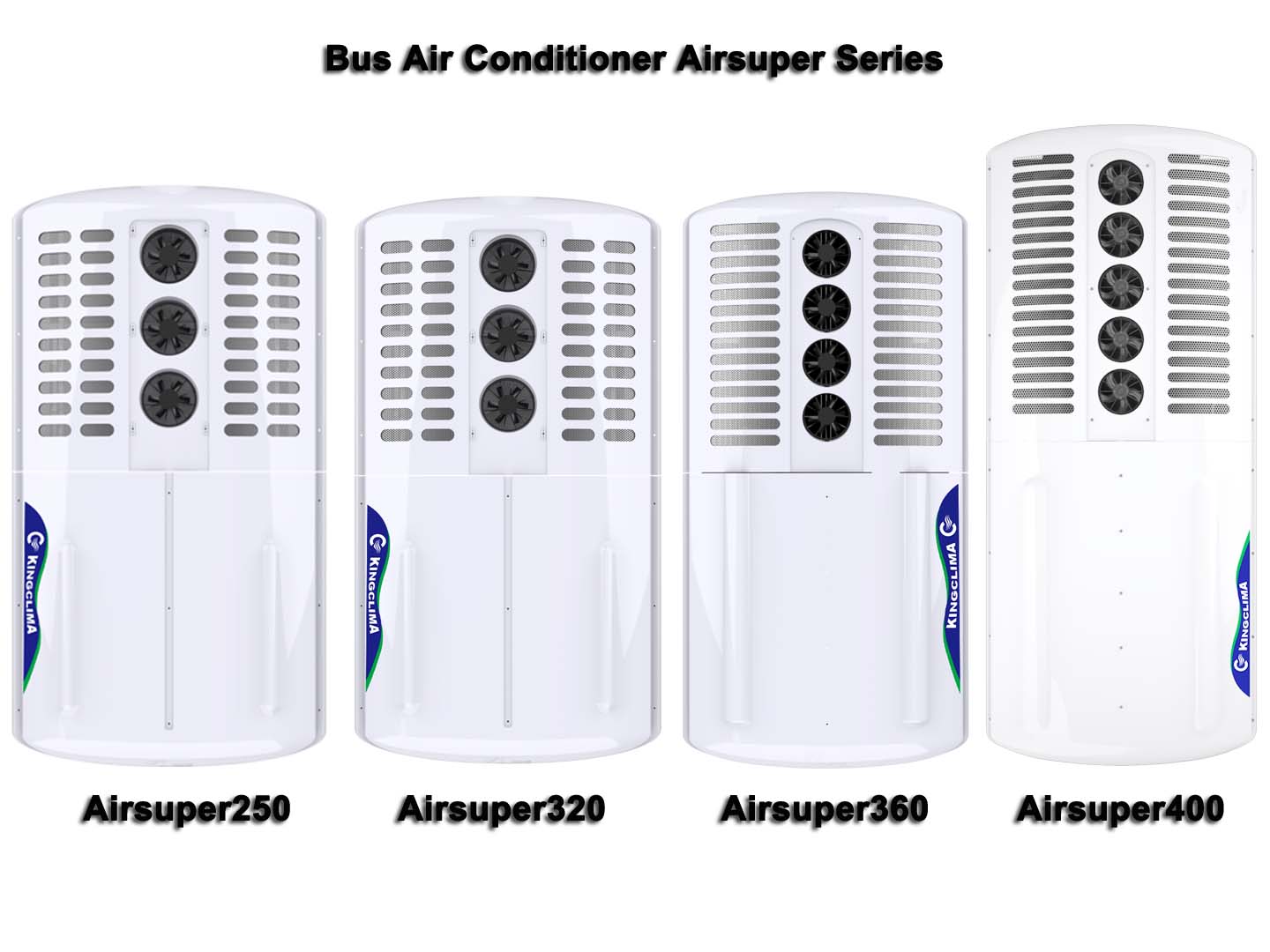

Bus Air Conditioner Airsuper Series Introduction
AirSuper bus ac unit is BusClima traditional bus air conditioning system, to provide a reliable climate comfort solution for a safe journey. The most obvious features of AirSuper series bus air conditioner is large cooling capacity, and best competitive price for customers.
It is especially designed for the 50 ℃ plus ambient temperature, to keep the bus cool. Or designed for the city bus and articulated metro bus, which need large cooling capacity to ensure the cool air inside, and keep passengers and drivers feel pleasant in hot summer.
Bus Air Conditioner Airsuper Series Application
Bus Air Conditioner Airsuper Series is suitable for 6-13M City bus,Coach,BRT,Intercity Bus,Diesel Bus,Shool Bus,Shuttle Bus,tour buses,airport shuttles.
Bus Air Conditioner Airsuper Series Parameter
| Model | AirSuper250 | AirSuper320 | AirSuper360 | AirSuper400 | |
| Cooling Capacity | 25KW | 32KW | 36KW | 42KW | |
| Heating Capacity | Optional | Optional | Optional | Optional | |
| Fresh Air | 1000m³/h | 1000m³/h | 1500m³/h | 1750m³/h | |
| Refrigerant | R134a | R134a/7.5KG | R134a/10.5KG | R134a/13KG | |
| Compressor | Model | Valeo TM31 | Bock FK40/560K | Bock FKX40/560K | BOCK 655K |
| Displacement | 313CC | 554CC | 554CC | 650CC | |
| Weight | 15.5KG | 33KG | 33KG | 31KG | |
| Oil Type | ZXL 100PG | BSE55 | BSE55 | FUCHS Reniso Triton SE55 | |
| Evaporator | Type | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube |
| Air Flow | 4000m³/h | 4000m³/h | 6000m³/h | 7000m³/h | |
| Blower Type | 4-speed centrifugal type | 4-speed centrifugal type | 4-speed centrifugal type | 4-speed centrifugal type | |
| No. of Blower | 4 pcs | 4 pcs | 6 pcs | 8 pcs | |
| Current | 32A | 36A | 48A | 48A | |
| Condenser | Type | Aluminum foil with internal ridge copper tube | Aluminum foil with internal ridge copper tube | Aluminum foil with internal ridge copper tube | Aluminum foil with internal ridge copper tube |
| Air Flow | 5700m³/h | 5700m³/h | 7600m³/h | 9500m³/h | |
| Fan Type | Axial type | Axial type | Axial type | Axial type | |
| No. of Fan | 3 pcs | 3 pcs | 4 pcs | 5 pcs | |
| Current | 24A | 27A | 32A | 40A | |
| Total Current | < 65A | < 75A | < 85A | < 95A | |
| Weight | 170 KG | 170 KG | 215 KG | 263 KG | |
| Dimension (L*W*H) mm | 3038*1820*189 | 3335*1820*187 | 3804*1902*205 | 4435*1902*210 | |
| Application | 6-8 Meter City Bus & Coach | 8-10 Meter City Bus & Coach | 9-11 Meter City Bus & Coach | 11-13 Meter City Bus & Coach | |

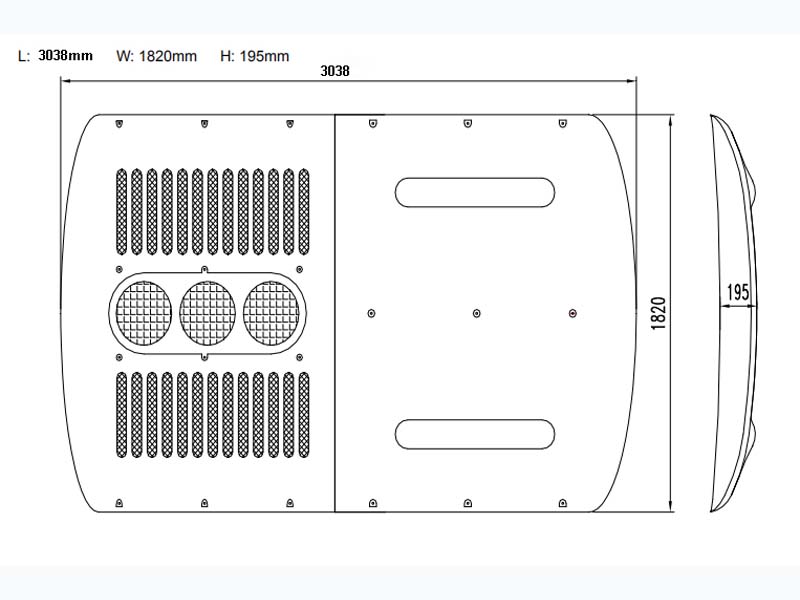

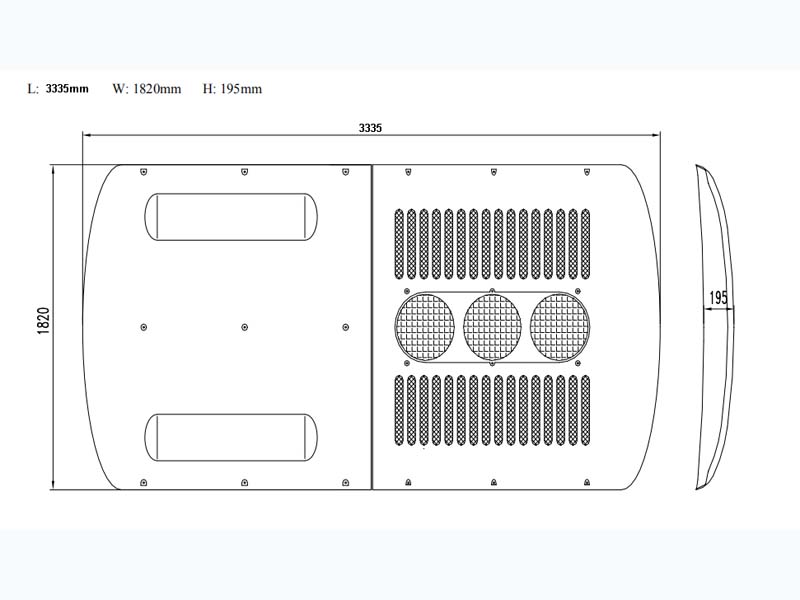

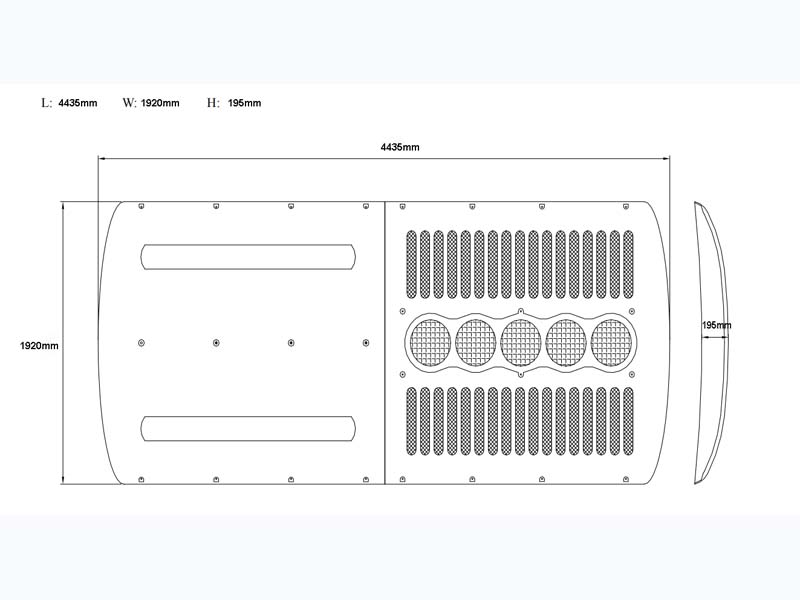

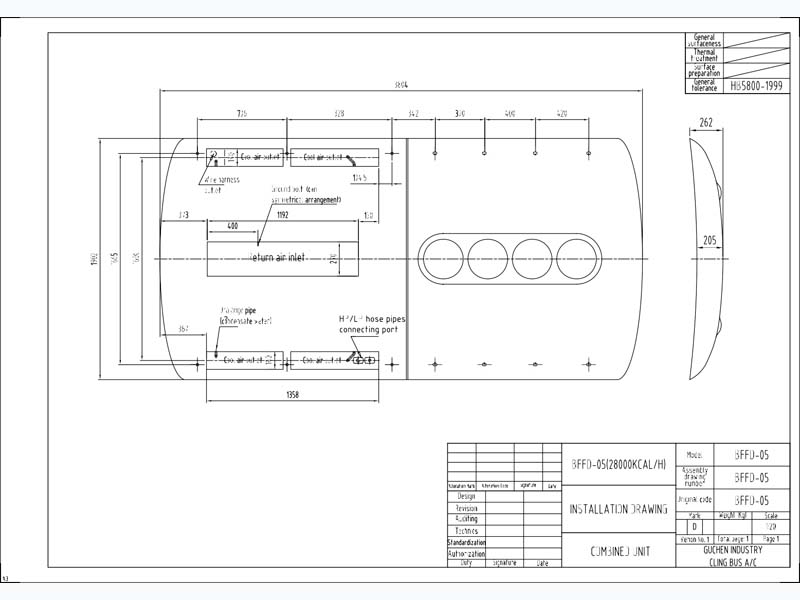

Bus Air Conditioner Airsuper Series Drawing
Bus Air Conditioner Airsuper Series Workshop
Bus Air Conditioner Airsuper Series Packaging & Delivery
