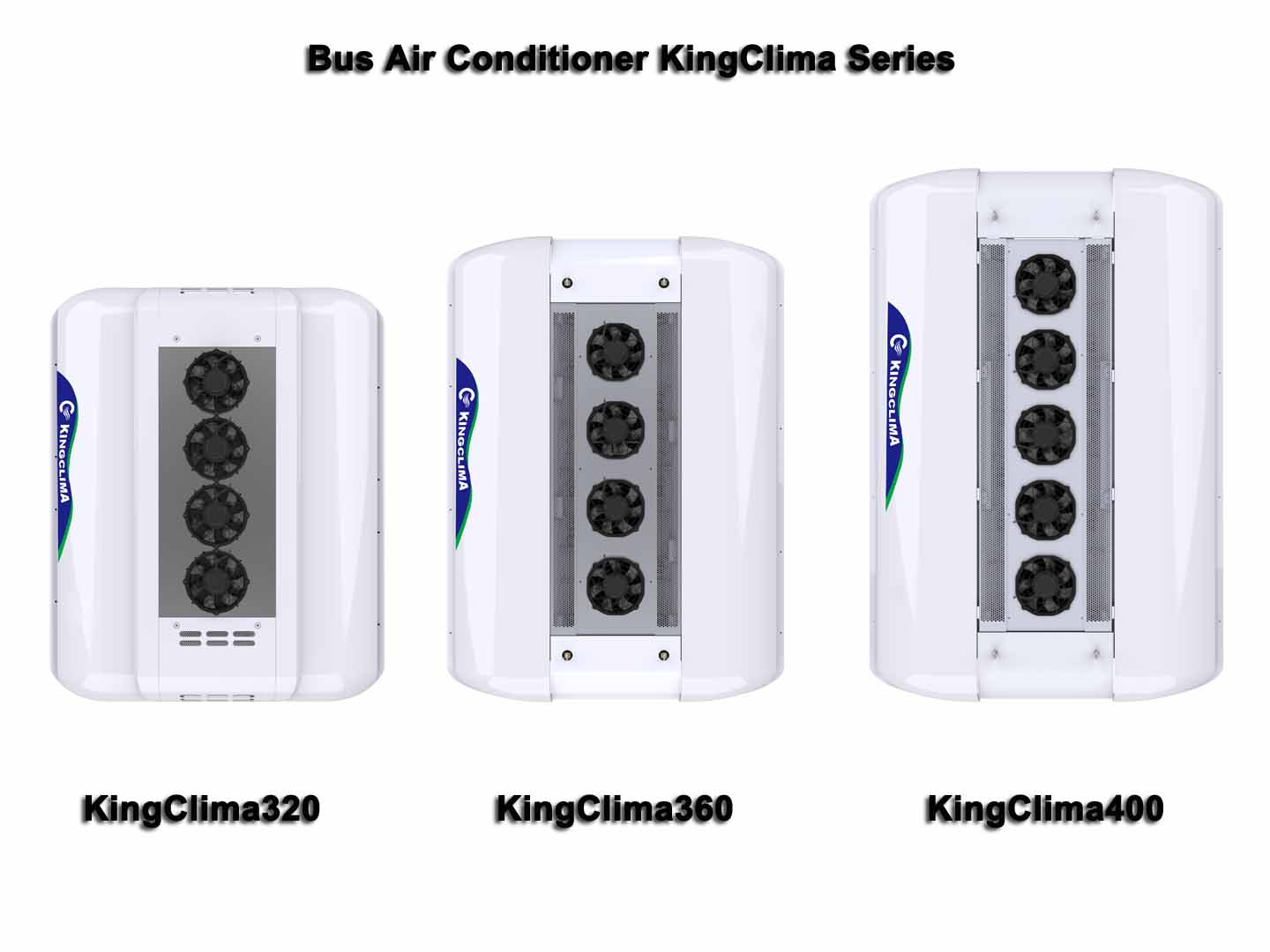

Bus Air Conditioner KingClima Series Introduction
KingClima Series from Bus Air Con suppliers in china with over 16 years experience in bus HVAC solutions, provide our customers best quality products.
KingClima series are the most popular and hot sale models of bus ac units. In which, our KingClima400 model with 40KW cooling capacity, split roof top mounted and equipped with Valeo or Bitzer compressors (Recommend for BOCK FKX40 compressors or Bock 55K compressors), and also can choose our remanufactured compressors for more economical solutions. It is usually used for 10-12 Meter City Bus & 11-13 Meter Coach cooling solutions.
Bus Air Conditioner KingClima Series Application
Bus Air Conditioner KingClima Series are suitable for 7-13M City bus,Coach,BRT,Intercity Bus,Diesel Bus,Shool Bus,Shuttle Bus,tour buses,airport shuttles.
Bus Air Conditioner KingClima Series Parameter
| Model | KingClima250 | KingClima320 | KingClima360 | KingClima400 | |
| Cooling Capacity | 25KW/85500BTU/21500Kcal/h | 32KW / 110000BTU / 27500Kcal/h | 123000BTU / 36KW / 31000Kcal/h | 136500BTU / 40KW / 34400Kcal/h | |
| Heating Capacity | Optional | Optional | Optional | Optional | |
| Fresh Air | 1000m³/h | 1000m³/h | 1000m³/h | 1000m³/h | |
| Refrigerant | R134a/6.5KG | R134a/5.0KG | R134a /6.5KG (for Micro channel heat exchanger)/11.5KG（for double Copper pipe） | R134a /7.5KG ((for Micro channel heat exchanger)/12.5KG（for double Copper pipe） | |
| Compressor | Model | TM-31/TM-43/F-400 | TM-43/BOCK 470/BitzerF400,4TFCY | BOCK FKX40/560K | BOCK FKX40/655K |
| Displacement | 313cc/430cc/400cc | 430cc / 470cc / 400cc,465cc | 554 CC | 650 CC | |
| Weight | 15.5KG/20.5KG/30KG | 23kg/ 33kg / 35KG | 33KG | 32KG | |
| Oil Type | ZXL 100PG / BSE55 | PAG100/ BSE55/ BSE55 | FUCHS Reniso Triton SE55 | FUCHS Reniso Triton SE55 | |
| Evaporator | Type | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube | Hydrophilic aluminum foil with internal ridge copper tube |
| Air Flow | 4000m³/h | 4400m³/h | 6000m³/h | 7000m³/h | |
| Blower Type | 4-speed centrifugal type | 4-speed centrifugal type | 4-speed centrifugal type | 4-speed centrifugal type | |
| No. of Blower | 4 pcs | 4 pcs | 6 pcs | 8 pcs | |
| Current | 36A | 36A | 48A | 48A | |
| Condenser | Type | Micro channel heat exchanger core | Micro channel heat exchanger core | Micro channel heat exchanger core | Micro channel heat exchanger core |
| Air Flow | 5700m³/h | 7600m³/h | 7600m³/h | 9500m³/h | |
| Fan Type | Axial type | Axial type | Axial type | Axial type | |
| No. of Fan | 3 pcs | 4 pcs | 4 pcs | 5 pcs | |
| Current | 27A | 36A | 32A | 40A | |
| Total Current | < 75A | < 80A | < 85A | < 95A | |
| Weight | / KG | 131 KG | 191 KG | 207 KG | |
| Dimension (L*W*H) mm | 2361*1920*300 | 2361*1920*300 | 2610*1920*320 | 2860*1920*292 | |
| Application | 7-9 Meter City Bus & Coach | 8-10 Meter City Bus & Coach | 9-11 Meter City Bus & 10-12 Meter Coach | 10-12 Meter City Bus & 11-13 Meter Coach | |

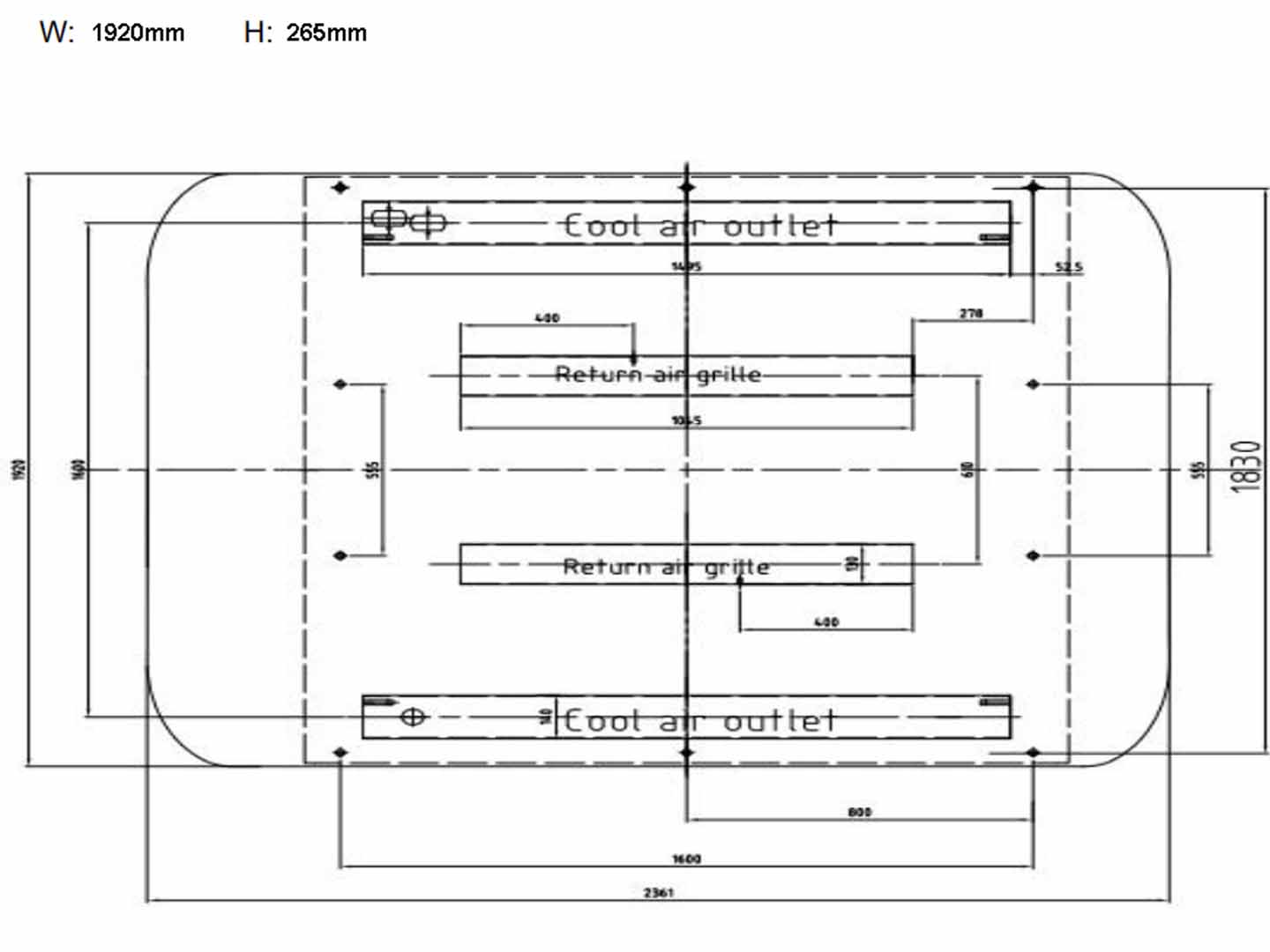

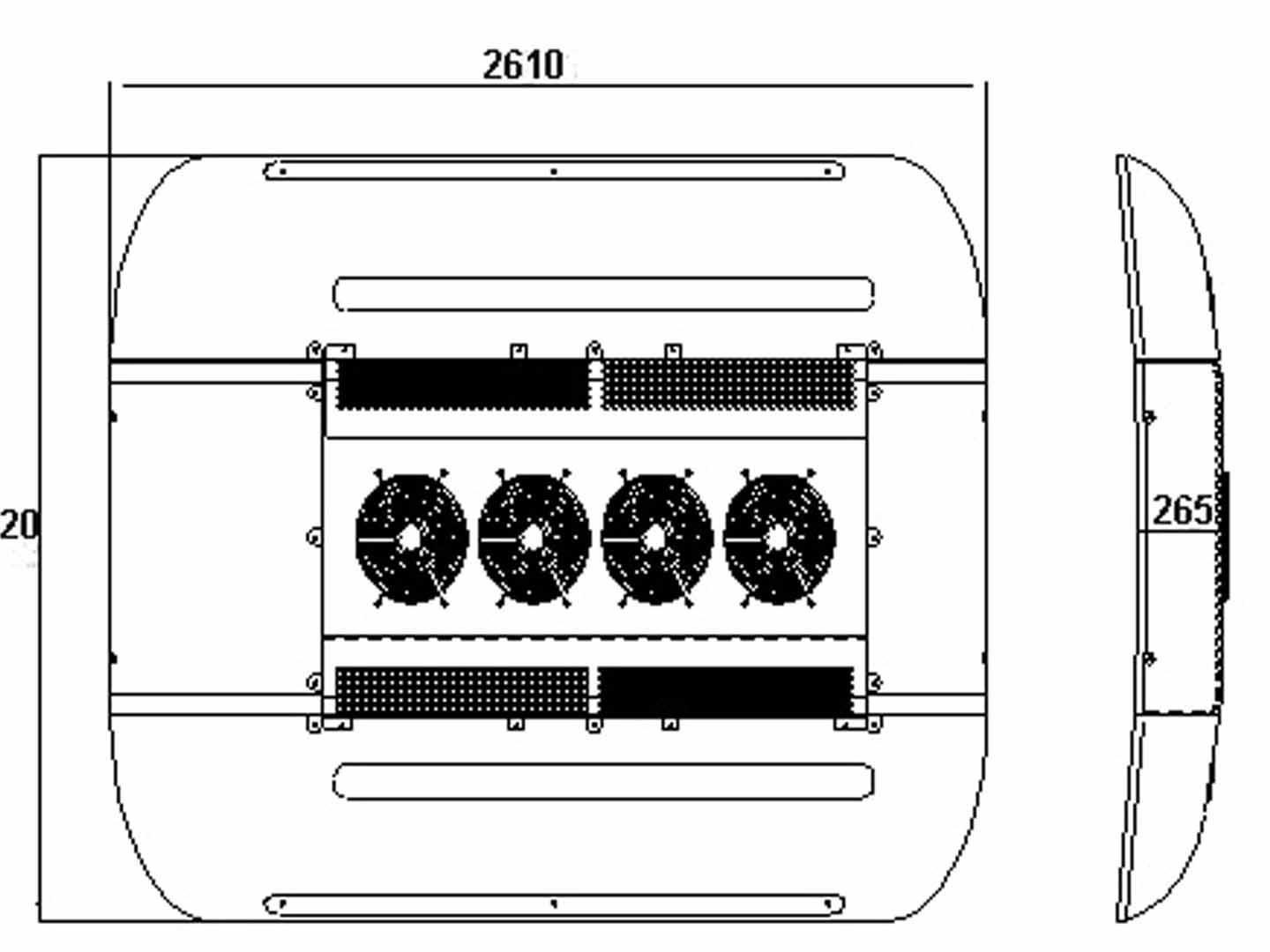

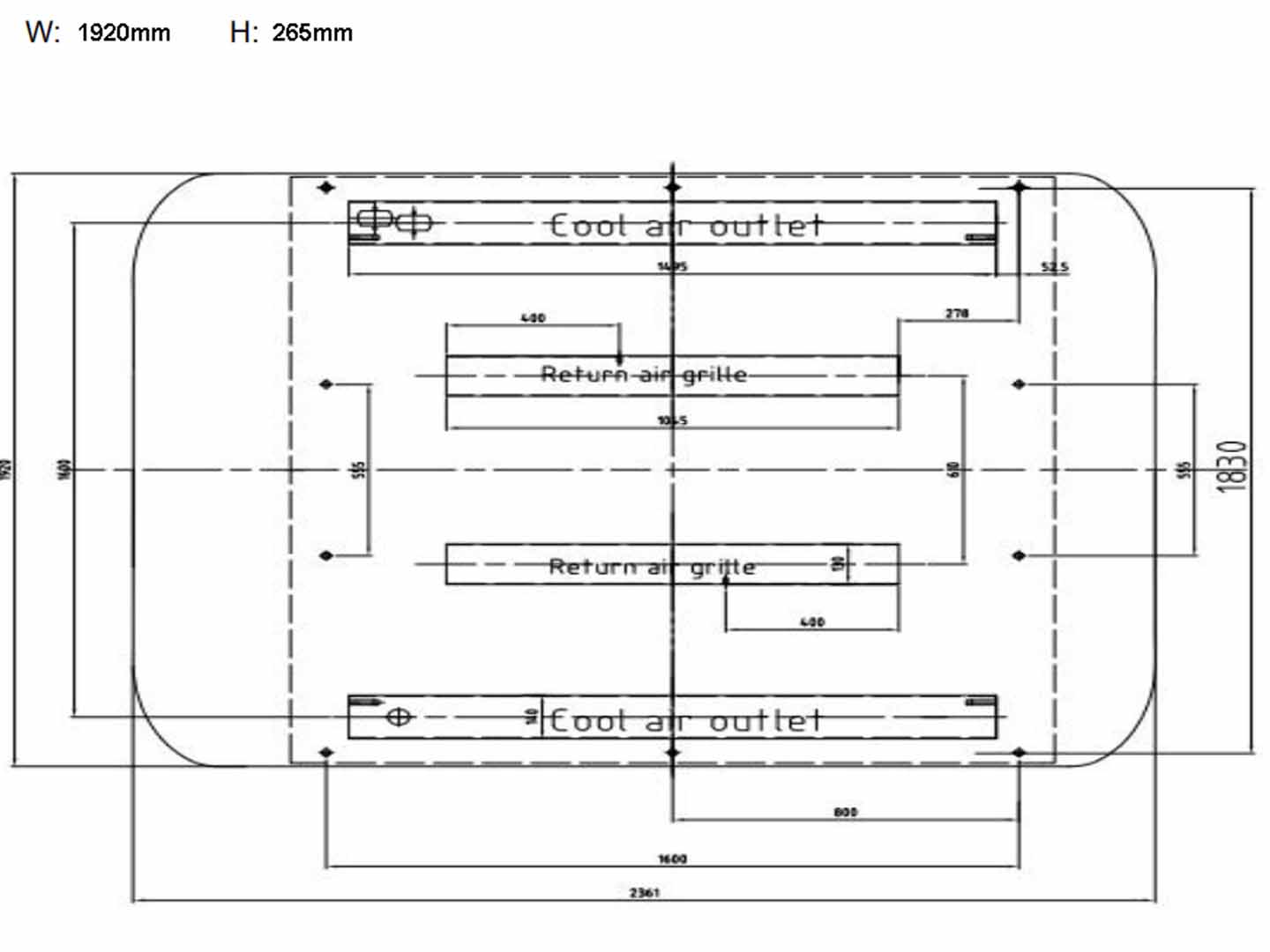

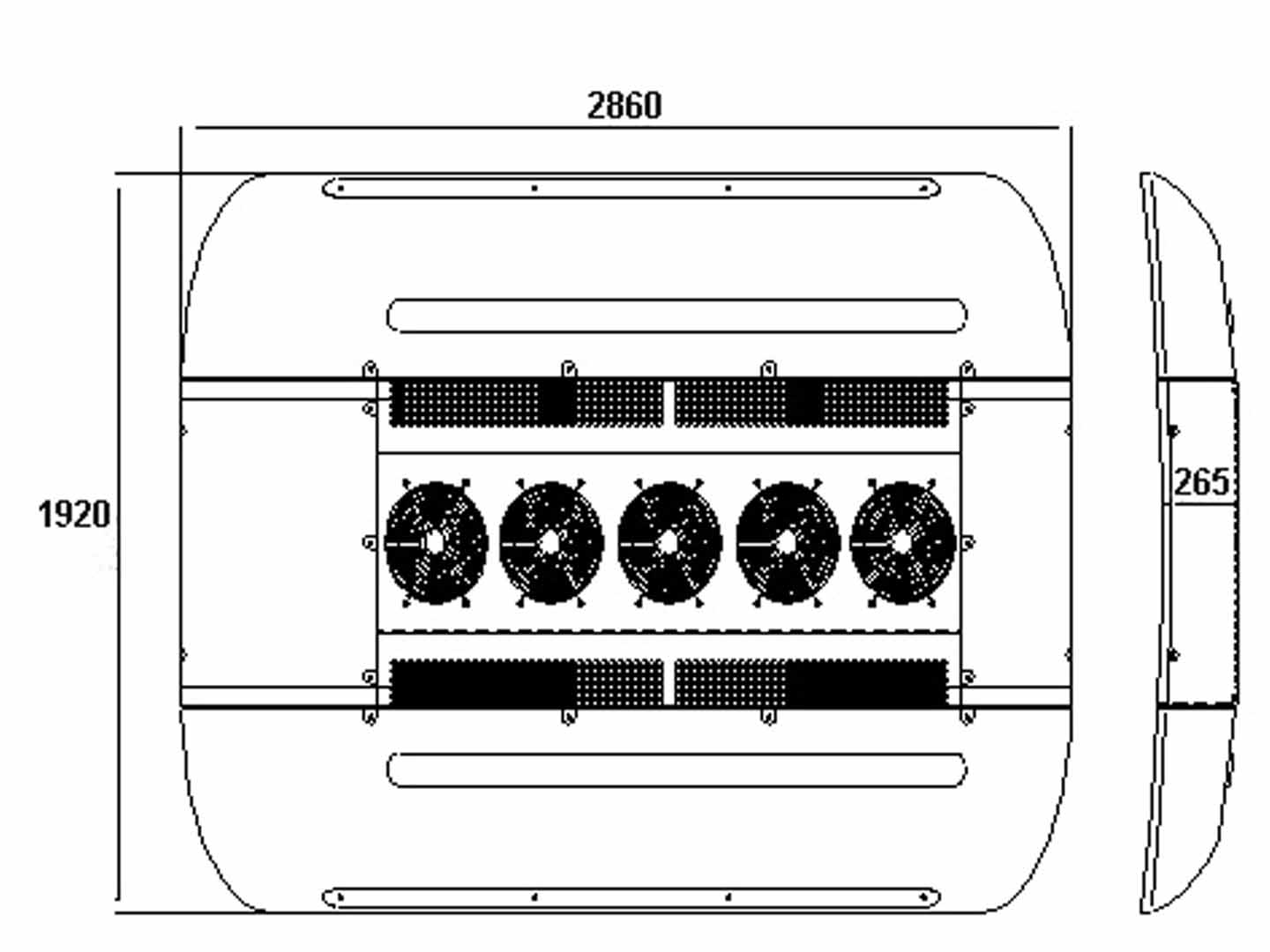

Bus Air Conditioner KingClima Series Drawing

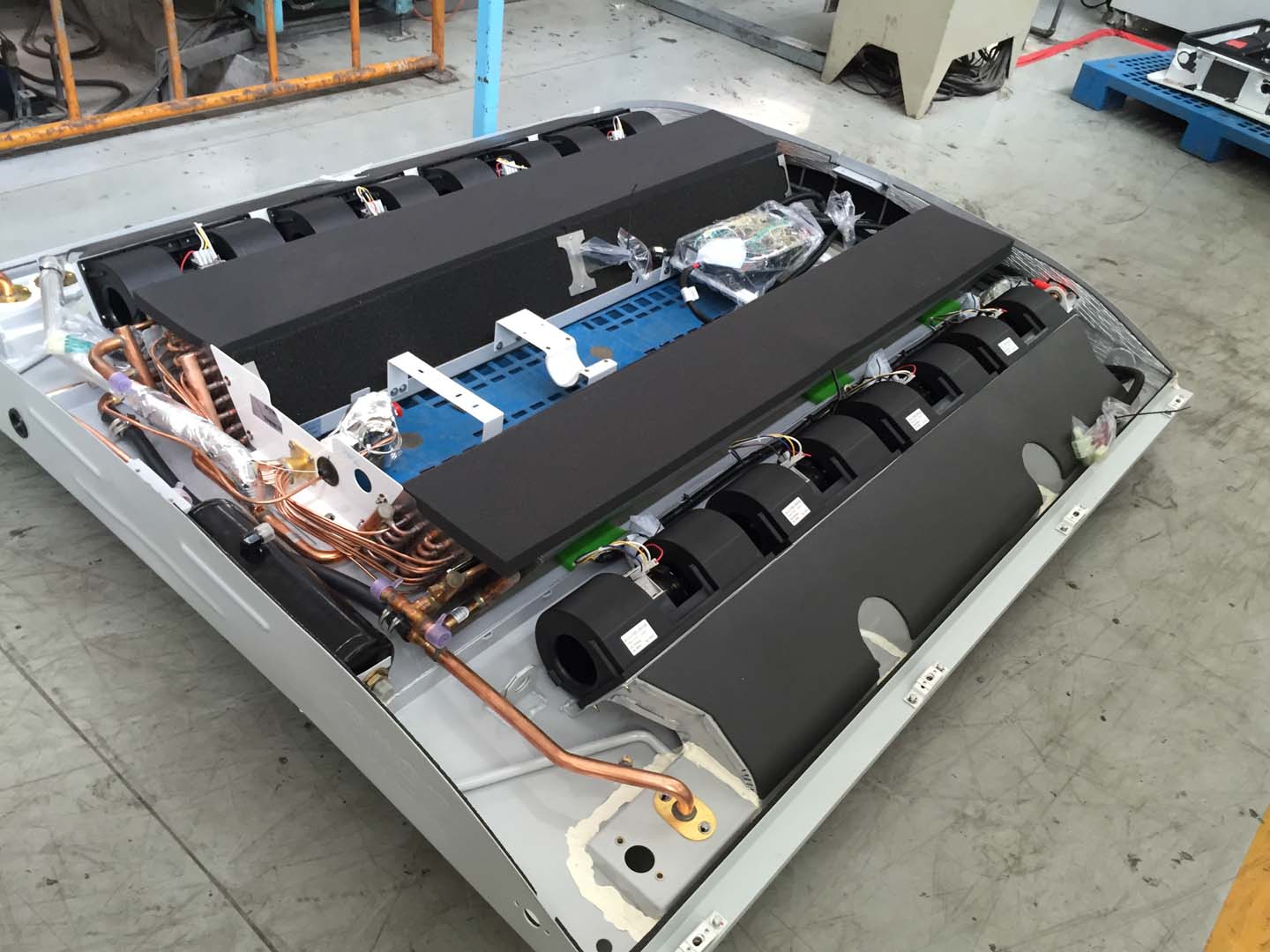

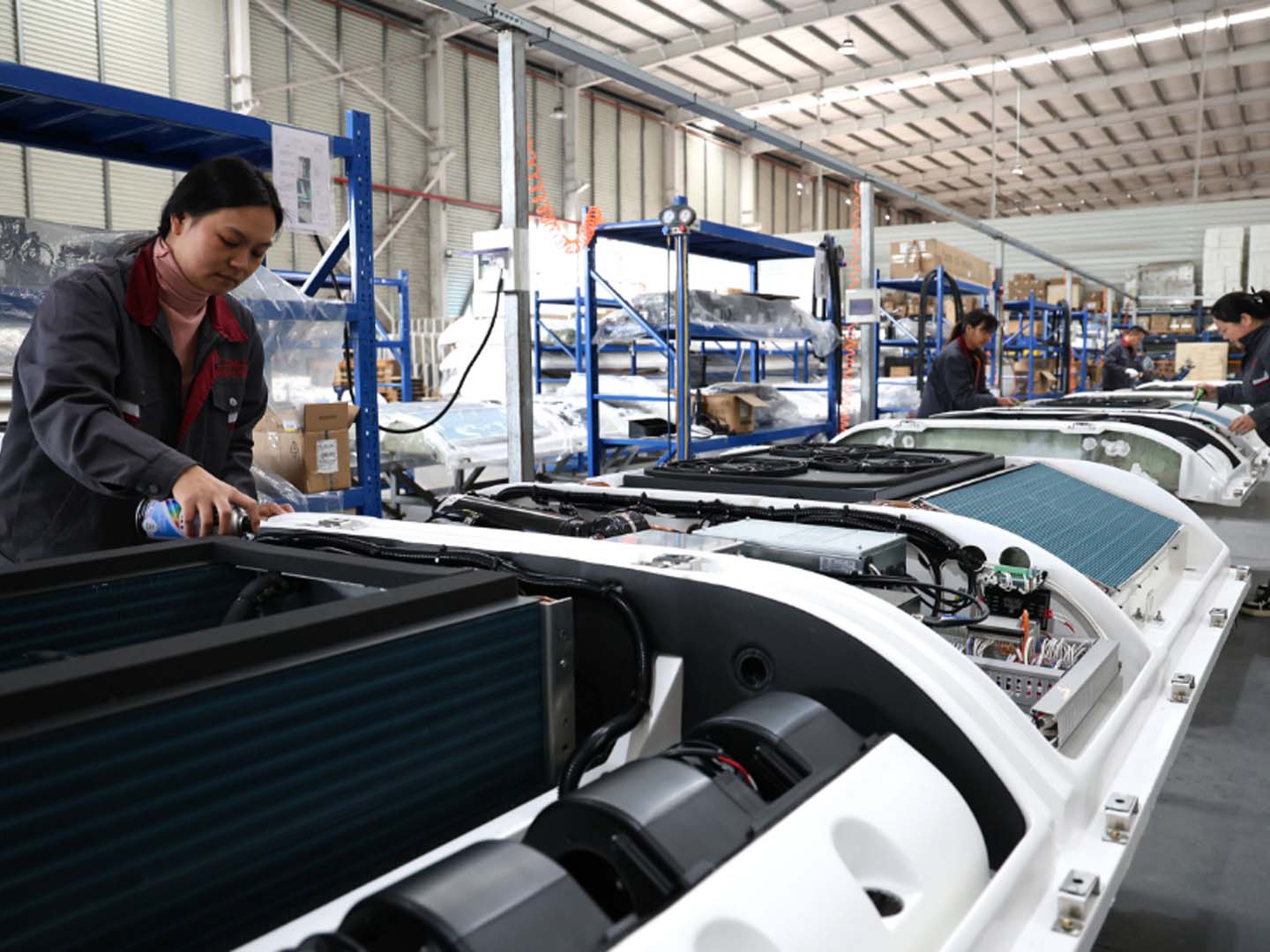

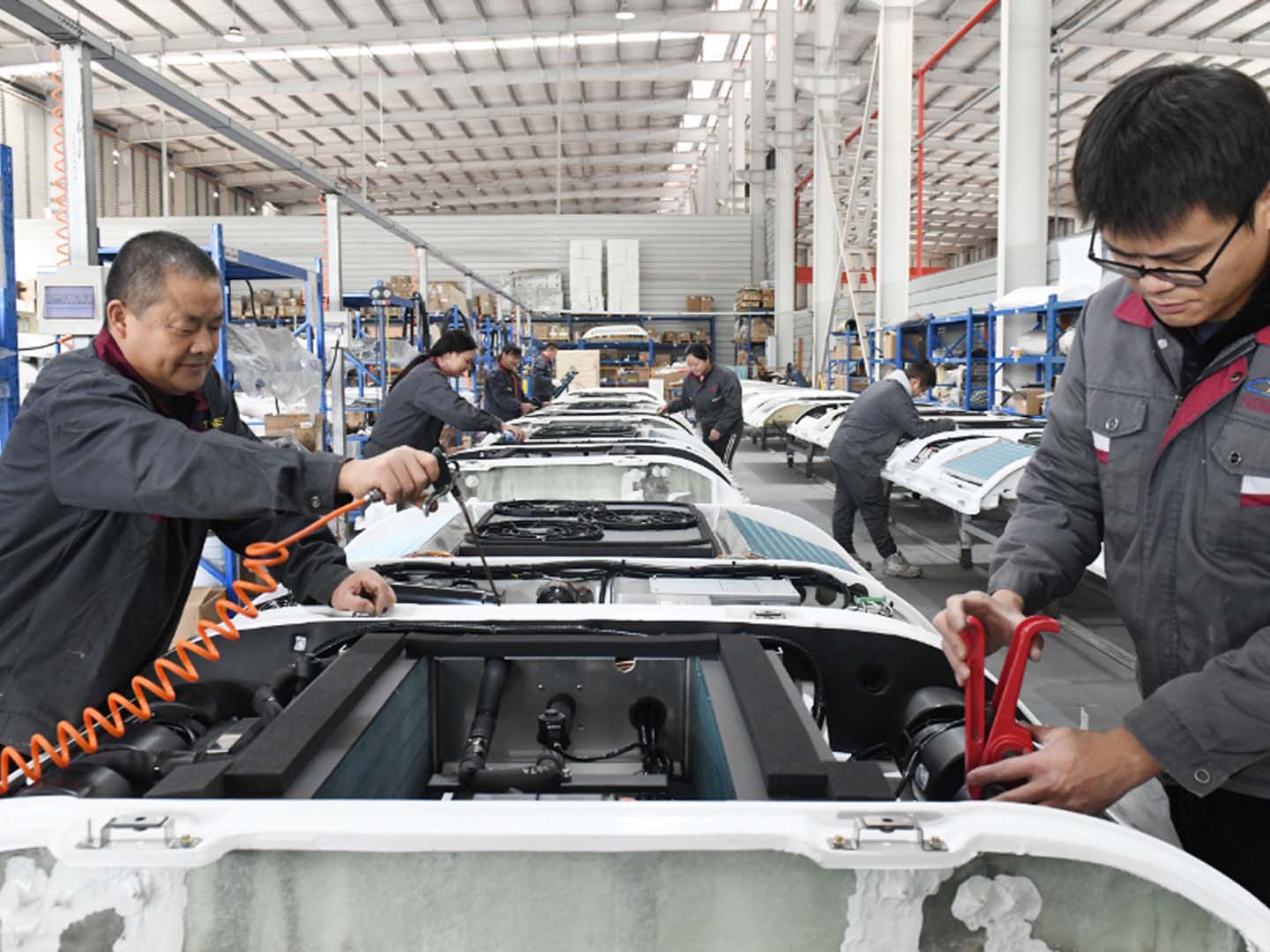

Bus Air Conditioner KingClima Series Workshop

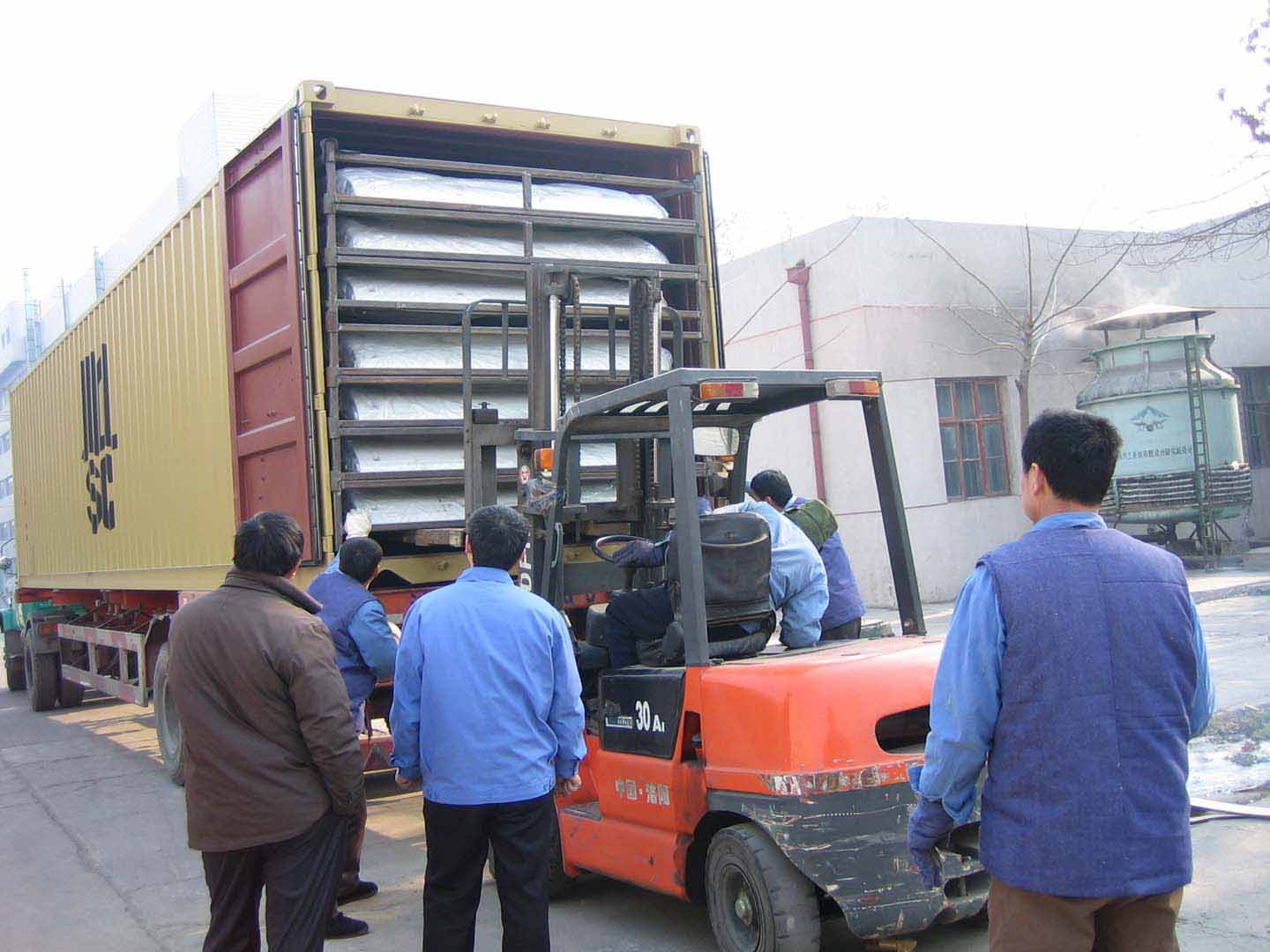

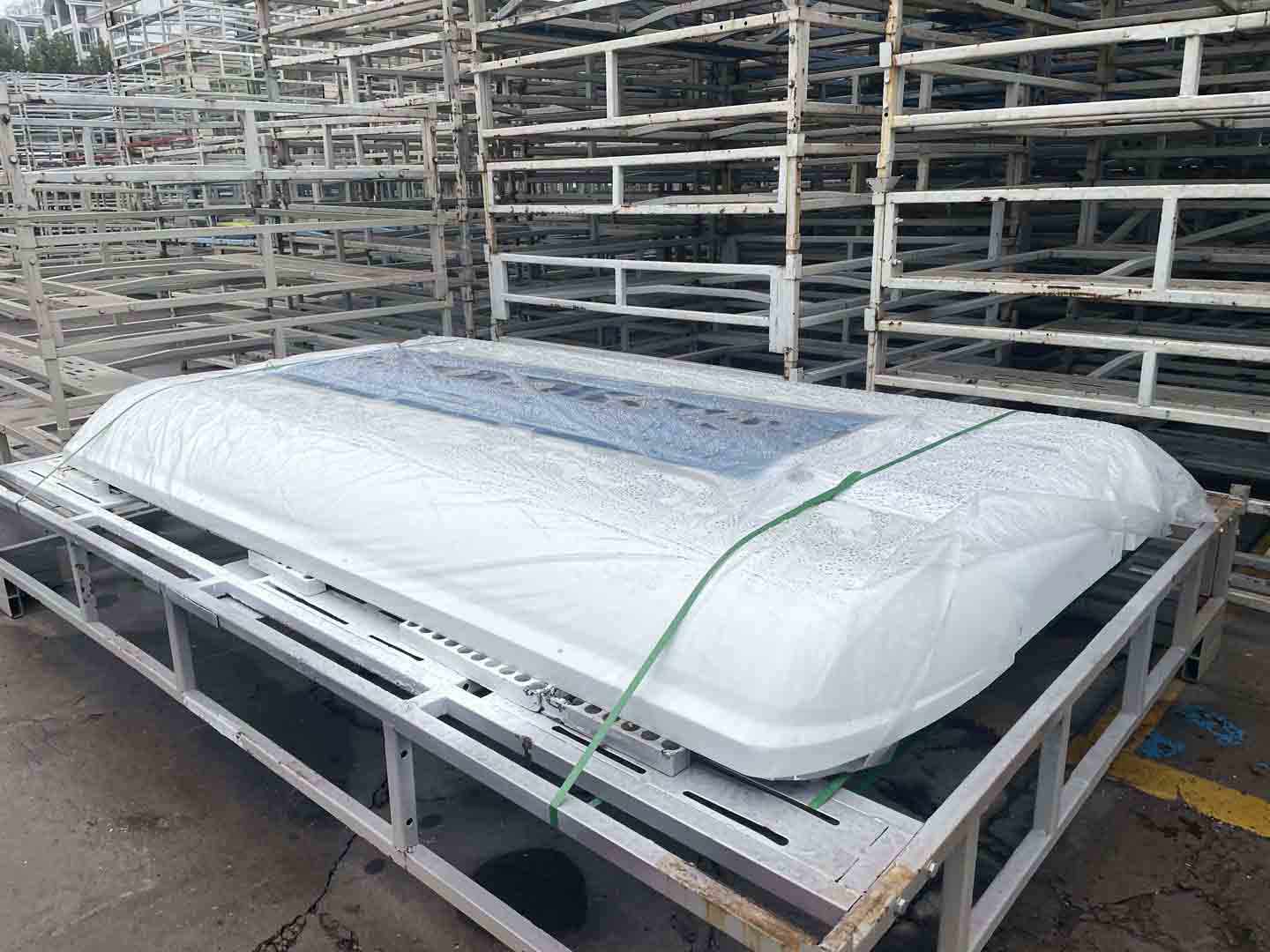

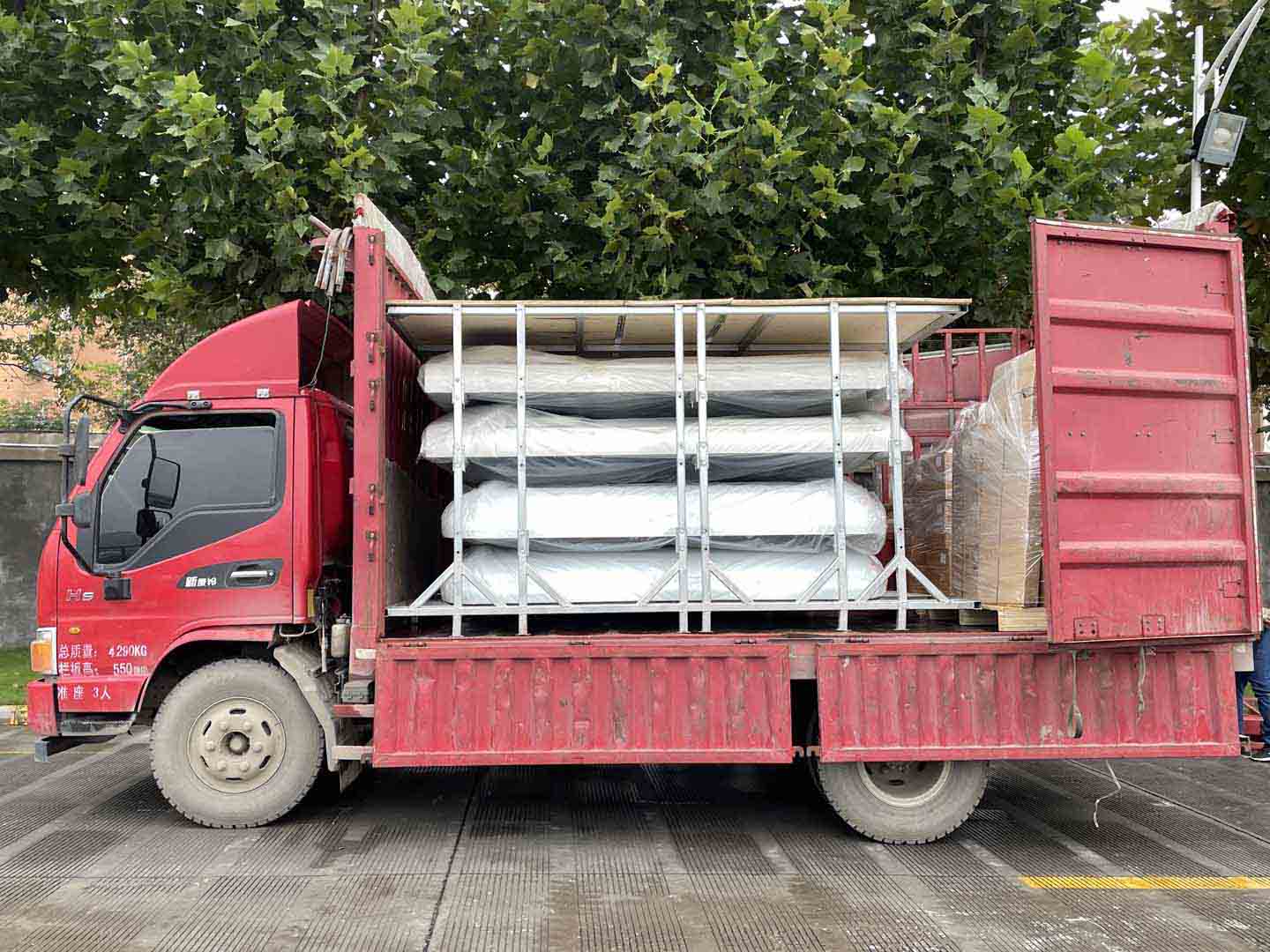

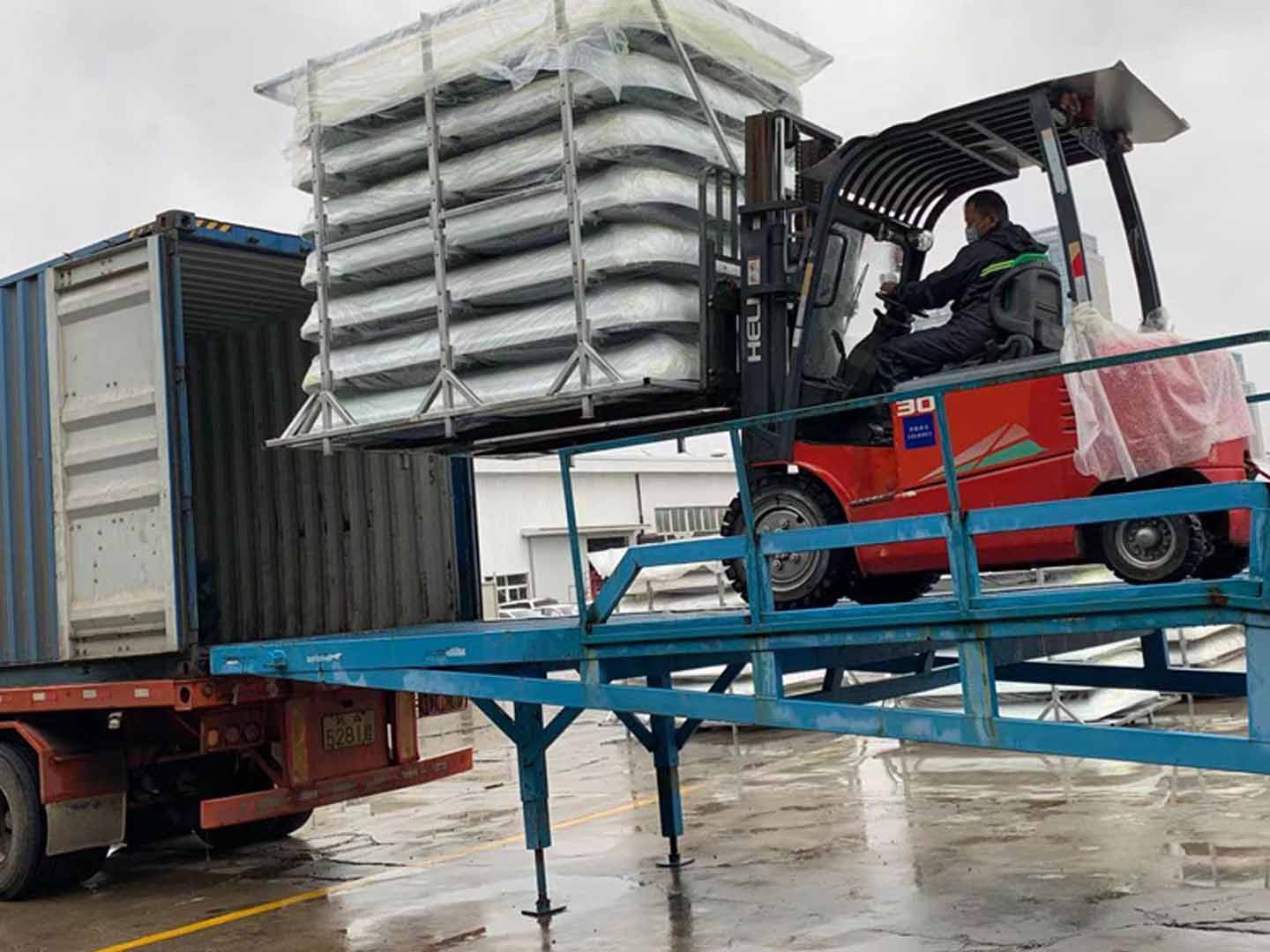

Bus Air Conditioner KingClima Series Packaging & Delivery
